T203

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1968 ??
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 142389

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage and/or dry batteries / 9; 7.5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org

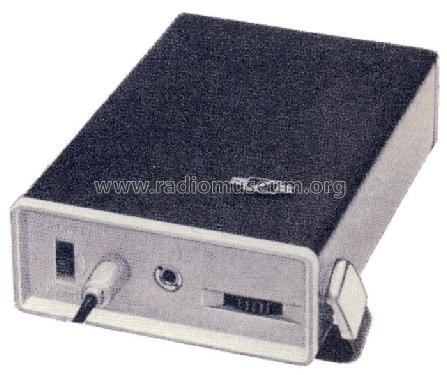

  • Model: T203 - Telefunken Deutschland TFK,
  • Dimensions (WHD)
  • 33 x 86 x 120 mm / 1.3 x 3.4 x 4.7 inch
  • Notes
  • Telefunken T 203;
    2 Kanal Empfänger, FM, 100 - 15.000 Hz, serienmäßige Frequenzen 36.7 & 37.1 MHz (25 - 45 MHz möglich), als Sender dient das Mikroport SK 1008, vermutlich vereinfachte mobile Alternativtype zum Mikroport EM 1008, Betrieb mit Batterie ca. 20 Std., Akku ca. 10 Std.
  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
