• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165883

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 WE16 or EF9 WE11 or EBC3 WE15 WE12 WE55

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

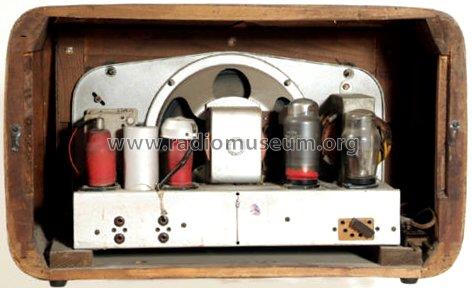

• Model: T5-B - Telefunken Italia, Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 300 x 250 mm / 19.7 x 11.8 x 9.8 inch

• Source of data
• Guida Pratica Antique Radio V (2003)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
