T65

T65; Telefunken Italia, (ID = 206446) Radio

T65; Telefunken Italia, (ID = 382562) Radio

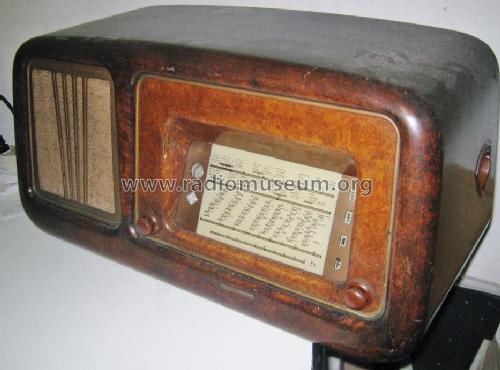

T65; Telefunken Italia, (ID = 662878) Radio T65; Telefunken Italia, (ID = 2038659) Radio
T65; Telefunken Italia, (ID = 2038661) Radio T65; Telefunken Italia, (ID = 2038662) Radio

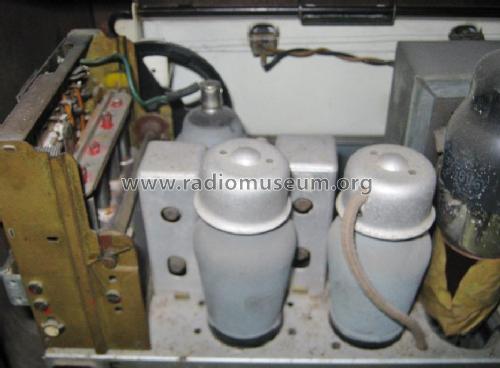

T65; Telefunken Italia, (ID = 2038663) Radio T65; Telefunken Italia, (ID = 2038664) Radio
Use red slider bar for more.
T65; Telefunken Italia, (ID = 662878) Radio
Telefunken Italia,: T65 [Radio] ID = 662878 324x200
Select picture or schematic to display from thumbnails on the right and click for download.
For model T65, Telefunken Italia, Milano:
Foto per cortesia di un ospite

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: WE20 WE16 WE19 WE15 WE12 WE55
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: T65 - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Sintonia ad induttori variabili. Controllo di tono. Ingresso per giradischi.

Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 334)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. T1)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Telefunken Italia, Milano
Here you find 263 models, 229 with images and 177 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
