T75

T75; Telefunken Italia, (ID = 255720) Radio
T75; Telefunken Italia, (ID = 1003883) Radio T75; Telefunken Italia, (ID = 1003884) Radio
T75; Telefunken Italia, (ID = 1235119) Radio T75; Telefunken Italia, (ID = 1235121) Radio
T75; Telefunken Italia, (ID = 1235122) Radio
Use red slider bar for more.
T75; Telefunken Italia, (ID = 1003883) Radio

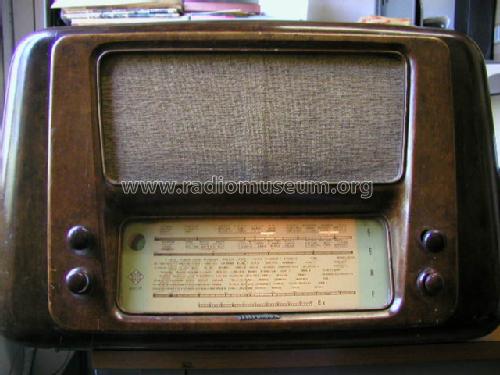

Telefunken Italia,: T75 [Radio] ID = 1003883 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model T75, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: WE16 WE20 WE19 WE17 WE12 WE14 WE56
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: T75 - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 335)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Telefunken Italia, Milano
Here you find 263 models, 229 with images and 177 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
