• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72998

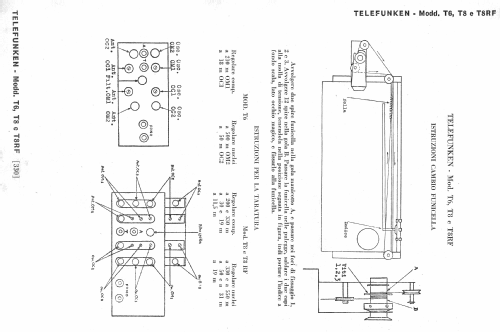

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 6.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

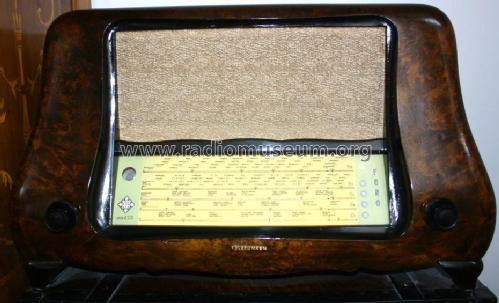

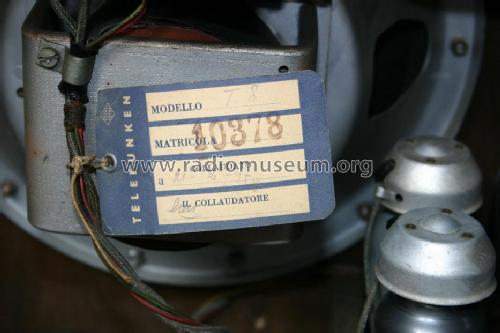

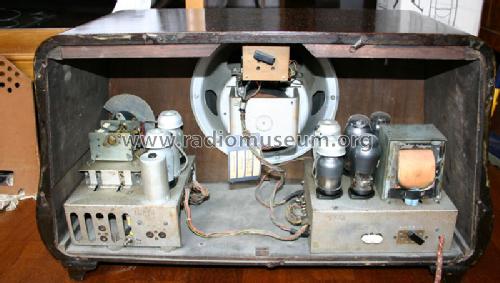

  • Model: T8 - Telefunken Italia, Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 680 x 420 x 380 mm / 26.8 x 16.5 x 15 inch
  • Notes
  • Serie Ambophon. Gamme d'onda: 2 gamme onde medie, 3 gamme d'onde corte. Lo stesso disegno del mobile è stato adottato anche per i modelli T6 e T5, di dimensioni e caratteristiche inferiori.
    Wave bands: 2× BC, 3× SW.
  • External source of data
  • Alessandro De Poi - http://www.depoi.net
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
