ticcolo 101; Telefunken (ID = 1178) Radio
Telefunken: ticcolo 101 [Radio] ID = 1178 700x479

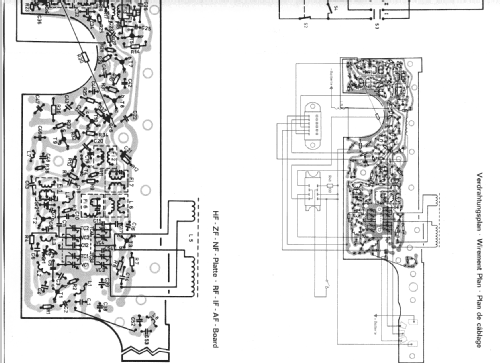

Select picture or schematic to display from thumbnails on the right and click for download.
For model ticcolo 101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1971/1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC1023 2SC1023 2SC1026 2SC1032 2SC1032 2SC1032 2SB33 2SC967 2SC967 2SB33
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.6 cm = 2.2 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: ticcolo 101 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 186 x 86 x 31 mm / 7.3 x 3.4 x 1.2 inch

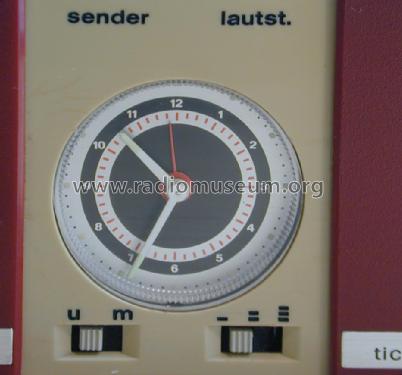

Notes Mechanische Schaltuhr mit Sleepfunktion.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 130.00 DM
Source of data Handbuch VDRG 1971/1972 / Radiokatalog Band 1, Ernst Erb
Mentioned in -- Original prospect or advert
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
