• Year
  • 1938
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 90098

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 14
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org

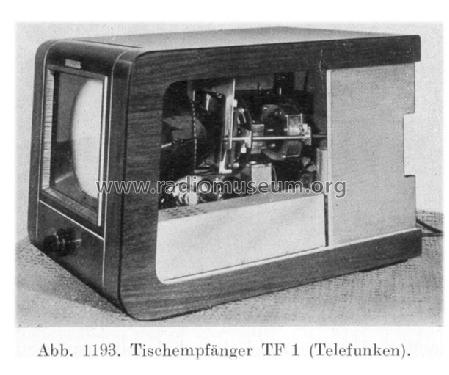

  • Model: Tischempfänger TF 1 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Bezirksfernseher mit 20x17cm, 441 Zeilen, 50 Hz. Tuner für 40-55MHZ, die Ton-ZF mit 1,4 MHz wird über abgeschirmtes Kabel an zusätzlichen Rundfunkempfänger herangeführt, vorbereitet für Drahtfernsehen, Röhrentyp RFB mit EY spezial.
  • Mentioned in
  • Vilbig: Lehrbuch der Hochfrequenztechnik (1939)
  • Author
  • Model page created by Georg Richter. See "Data change" for further contributors.
