T.P.64

T.P.64; Telefunken (ID = 2034566) R-Player T.P.64; Telefunken (ID = 2034565) R-Player
T.P.64; Telefunken (ID = 2034569) R-Player T.P.64; Telefunken (ID = 2034570) R-Player
T.P.64; Telefunken (ID = 2034567) R-Player T.P.64; Telefunken (ID = 2034568) R-Player
T.P.64; Telefunken (ID = 731058) R-Player T.P.64; Telefunken (ID = 731059) R-Player
T.P.64; Telefunken (ID = 731060) R-Player T.P.64; Telefunken (ID = 731061) R-Player
Use red slider bar for more.
T.P.64; Telefunken (ID = 2034566) R-Player
Telefunken: T.P.64 [R-Player] ID = 2034566 1400x1013
Select picture or schematic to display from thumbnails on the right and click for download.
For model T.P.64, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1936 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: T.P.64 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 220 x 392 mm / 18.1 x 8.7 x 15.4 inch

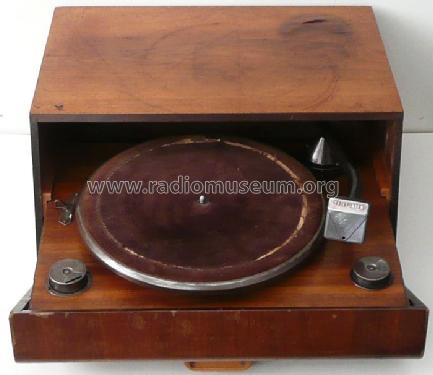

Notes Elektrischer Schellack-Plattenspieler mit Stahlnadel in Schubladenchassis für 78 Upm. Geschwindigkeit einstellbar.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data - - Data from my own collection

Model page created by Guido Höh. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3439 models, 3008 with images and 1997 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
