• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1960 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 188660

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: TPW513 - Telefunken Italia, Milano

• Shape
• Chassis only or for «building in»

• Notes
• Può funzionare da cambiadischi, giradischi automatico o per la riproduzione continua. Consente la riproduzione di dischi da 17, 25 o 30cm di diametro a quattro velocità, cioè 16 2/3, 33 1/3, 45, 78 giri al minuto.

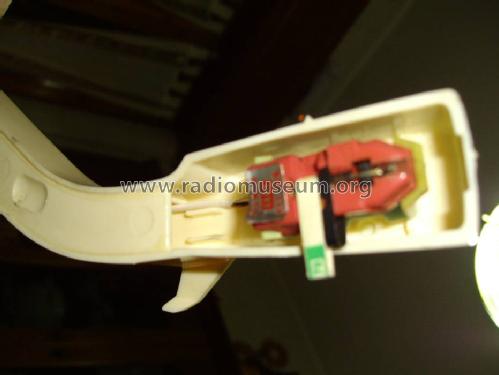

  Rivelatore piezoelettrico: KST106
  Puntina al zaffiro: SNM106 (da sostituire dopo 100-150 ore).

  Functions as a changer, or automatic turntables for continuous play.
  Playback of discs 17, 25 or 30cm in diameter
  at four speeds: 16 2/3, 33 1/3, 45, 78 rpm. Piezoelectric pick-up: KST106
  The sapphire stylus: SNM106.


• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Guido Rubino. See "Data change" for further contributors.
