Tropical 465A
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1944 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98471

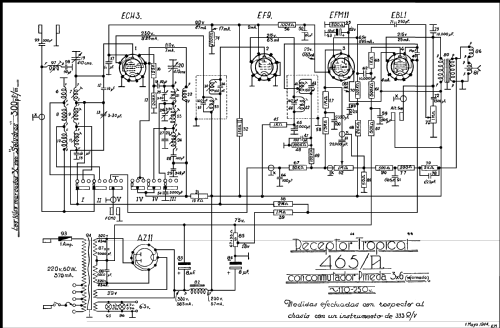

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tropical 465A - Telefunken Radiotécnica
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 585 x 695 x 260 mm / 23 x 27.4 x 10.2 inch
- Price in first year of sale
- 2,075.00 ESP
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from E. See "Data change" for further contributors.
