Turin ; Telefunken (ID = 1642862) R-Player
Telefunken: Turin [R-Player] ID = 1642862 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Turin, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: AC122 AC122 AC124 AC124
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Turin - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 163 x 300 mm / 14.6 x 6.4 x 11.8 inch
Notes

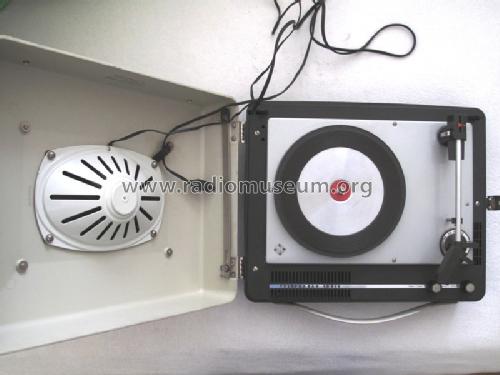

Kristallsystem T23/1 mit Saphir A23/1, Lautsprecher (189 x 127 mm, Impedanz 25 Ω) ist im Deckel eingebaut, 4 Geschwindigkeiten.

Wurde mit geändertem Verstärker und Lautsprecher als Turin X gefertigt.

Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)
Source of data -- Original-techn. papers.

Model page created by Andreas Echtner. See "Data change" for further contributors.
