TW504 de Luxe

TW504 de Luxe; Telefunken (ID = 303605) R-Player
TW504 de Luxe; Telefunken (ID = 2205643) R-Player TW504 de Luxe; Telefunken (ID = 457486) R-Player

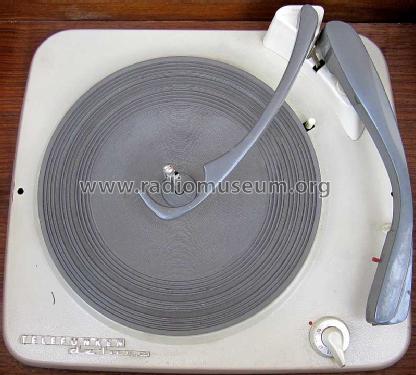

TW504 de Luxe; Telefunken (ID = 1063724) R-Player
Use red slider bar for more.
TW504 de Luxe; Telefunken (ID = 2205643) R-Player
Telefunken: TW504 de Luxe [R-Player] ID = 2205643 1200x639
Select picture or schematic to display from thumbnails on the right and click for download.
For model TW504 de Luxe, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken, Produkt-Katalog 1964/65

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1962–1964 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TW504 de Luxe - Telefunken Deutschland TFK,
Shape Chassis only or for «building in»
Dimensions (WHD) 345 x 242 x 305 mm / 13.6 x 9.5 x 12 inch
Notes 4 Geschwindigkeiten; Duplo-Kristall-System T20/2, Frequenzbereich 30-15000 Hz; schwerer Plattenteller; Motor schwimmend aufgehängt; Flachriemenantrieb.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 150.00 DM
Source of data Handbuch VDRG 1962/1963

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
