• Year
  • 1922 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 105191

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • RE11
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case, TUBES VISIBLE
  • from Radiomuseum.org

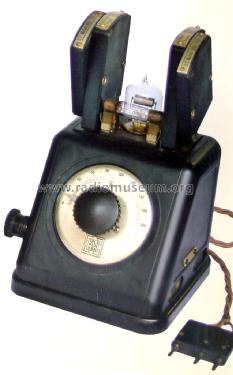

  • Model: Universalempfänger E266g - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, slant panel.
  • Notes
  • Kommerzieller Universalempfänger mit Spulensatz für Wellen von 200 bis 20'000 Meter. Hauptsächlich eingesetzt auf von der DEBEG mit Funkstellen ausgerüsteten Schiffen.
  • Mentioned in
  • Lehmann: Die Rundfunk- und Tonfilm-Technik (1932)
  • Author
  • Model page created by Georg Richter. See "Data change" for further contributors.
