Unknown

Unknown ; Telefunken, Helsinki (ID = 1776830) Radio Unknown ; Telefunken, Helsinki (ID = 1776831) Radio
Unknown ; Telefunken, Helsinki (ID = 1776832) Radio Unknown ; Telefunken, Helsinki (ID = 1776833) Radio
Unknown ; Telefunken, Helsinki (ID = 1776834) Radio Unknown ; Telefunken, Helsinki (ID = 1776835) Radio
Unknown ; Telefunken, Helsinki (ID = 1776836) Radio Unknown ; Telefunken, Helsinki (ID = 1776837) Radio
Unknown ; Telefunken, Helsinki (ID = 1776838) Radio
Use red slider bar for more.

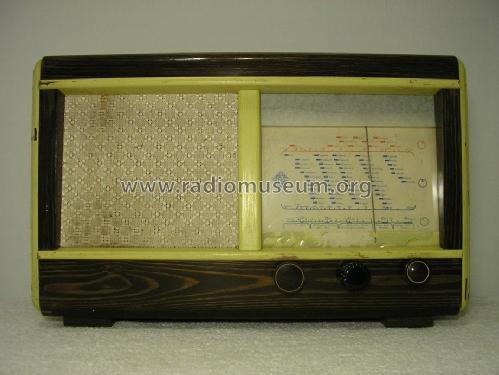

Unknown ; Telefunken, Helsinki (ID = 1776830) Radio
Telefunken, Helsinki: Unknown [Radio] ID = 1776830 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unknown, Telefunken, Helsinki

Country:  Finland
Manufacturer / Brand:  Telefunken, Helsinki
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH35 EF39 EBC33 EL33 AZ31
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 225; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Unknown - Telefunken, Helsinki
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 502 x 317 x 230 mm / 19.8 x 12.5 x 9.1 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Telefunken, Helsinki
Here you find 19 models, 18 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
