• Year
  • 1966/1967
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 26756

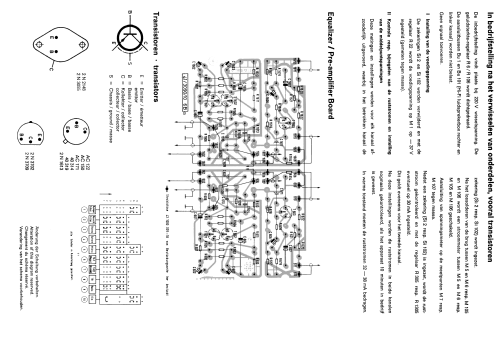

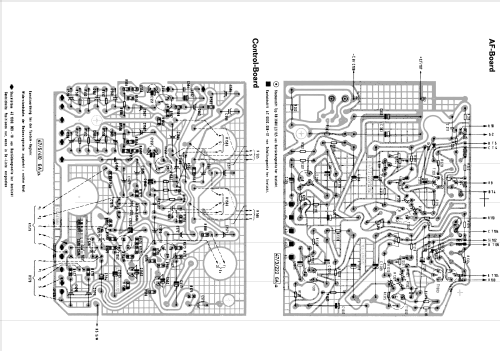

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 26
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: V101 - Telefunken Deutschland TFK,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 465 x 150 x 325 mm / 18.3 x 5.9 x 12.8 inch
  • Notes
  • HiFi-Stereo-Verstärker mit 2 Endstufen je 25 W (Sinus), Übertragungsbereich: 20···22000 Hz ± 1,5 dB bzw. 17···35000 Hz ± 3 dB.
  • External source of data
  • erb
  • Mentioned in
  • Funk-Technik (FT) (21/1966, S. 756 - 758 / Beschreibung, Daten, Schema)
