V250 HiFi

V250 HiFi; Telefunken (ID = 2007348) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007349) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007350) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007351) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007352) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007353) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007354) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007355) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007356) Ampl/Mixer

V250 HiFi; Telefunken (ID = 2007357) Ampl/Mixer
V250 HiFi; Telefunken (ID = 754012) Ampl/Mixer V250 HiFi; Telefunken (ID = 441633) Ampl/Mixer
V250 HiFi; Telefunken (ID = 2154418) Ampl/Mixer V250 HiFi; Telefunken (ID = 2154419) Ampl/Mixer
V250 HiFi; Telefunken (ID = 2154421) Ampl/Mixer V250 HiFi; Telefunken (ID = 2154422) Ampl/Mixer
V250 HiFi; Telefunken (ID = 2154423) Ampl/Mixer
Use red slider bar for more.
V250 HiFi; Telefunken (ID = 754012) Ampl/Mixer

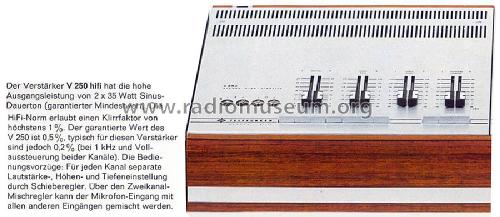

Telefunken: V250 HiFi [Ampl/Mixer] ID = 754012 900x391

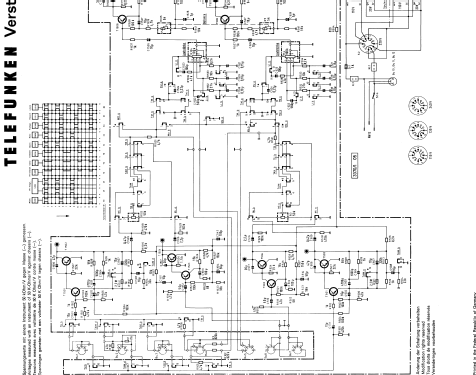

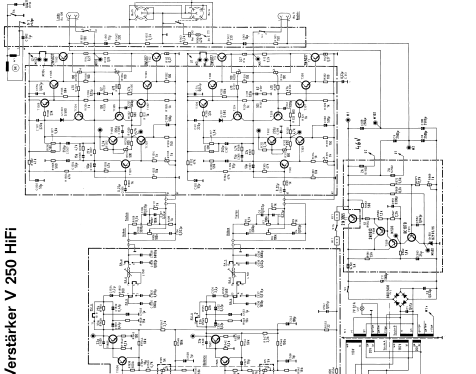

Select picture or schematic to display from thumbnails on the right and click for download.
For model V250 HiFi, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken Service

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1968/1969 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 38:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 70 W (unknown quality)
from Radiomuseum.org Model: V250 HiFi - Telefunken Deutschland TFK,
Dimensions (WHD) 470 x 330 x 120 mm / 18.5 x 13 x 4.7 inch
Notes

Stereo-NF-Verstärker mit 2 Endstufen je 35 W (Sinus).

Passende Lautsprecherbox L250 HiFi

Imported in Spain with the name Acusta V-250 Hi-Fi. Final price: 25.534,20 pesetas (1€= 166,386 pts.)

External source of data erb
Source of data Handbuch VDRG 1968/1969
Literature/Schematics (1) -- Original-techn. papers.
