W258 HiFi

W258 HiFi; Telefunken (ID = 595518) R-Player
W258 HiFi; Telefunken (ID = 711107) R-Player W258 HiFi; Telefunken (ID = 393485) R-Player
W258 HiFi; Telefunken (ID = 711106) R-Player W258 HiFi; Telefunken (ID = 711112) R-Player
W258 HiFi; Telefunken (ID = 752540) R-Player W258 HiFi; Telefunken (ID = 1114868) R-Player
W258 HiFi; Telefunken (ID = 1114869) R-Player W258 HiFi; Telefunken (ID = 1114870) R-Player
W258 HiFi; Telefunken (ID = 1114871) R-Player W258 HiFi; Telefunken (ID = 1114872) R-Player
Use red slider bar for more.
W258 HiFi; Telefunken (ID = 711107) R-Player

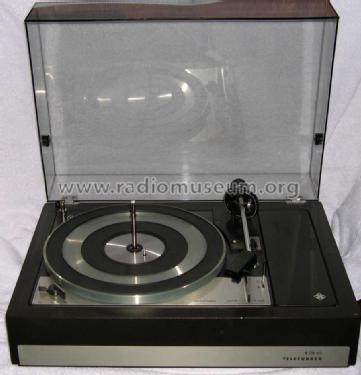

Telefunken: W258 HiFi [R-Player] ID = 711107 900x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model W258 HiFi, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1972–1975 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: W258 HiFi - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 470 x 174 x 330 mm / 18.5 x 6.9 x 13 inch
Notes 3 Geschwindigkeiten; Stereo-Magnetsystem M91MG; Übertragungsbereich: 20-20000 Hz.
Im VDRG-Handbuch 1972 werden irrtümlich 4 Geschwindigkeiten genannt, Hdb. 1973 und 1974 führen korrekt 3. Eingebautes Phono-Chassis PE 3060.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data Handbuch VDRG 1972/1973
Mentioned in Handbuch VDRG 1973/1974 (und 1974)

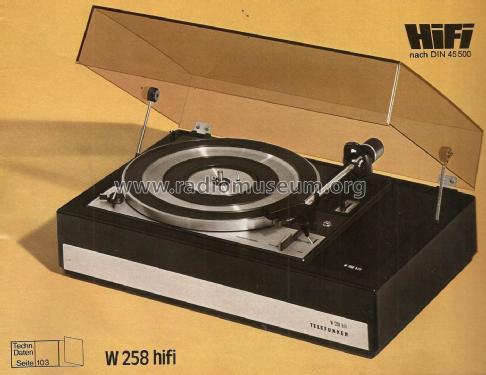

Literature/Schematics (1) Prospekt 1975

Model page created by Roland Müller. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3462 models, 3032 with images and 2007 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: W258 HiFi
Threads: 1 | Posts: 3
Hits: 3209     Replies: 2
telefunken: W 258 hifi (W 258);
Rolf Franke
29.Mar.09
  1

Hi,

I own the subject model, but have no manual for it. I have tried on  line to locate one, without success.

I am assuming that among the many members of Radiomuseum there is someone who also owns this LP changer and might be able to make available a copy for me.

Would very much appreciate it.

Rolf Franke



Mark Hippenstiel
29.Mar.09
  2

Hello Rolf,

a quick search indicated (no proff though) that the chassis is a PE 3060, user and service manual are available here:

http://perpetuum-ebner.pytalhost.com/3060/
http://perpetuum-ebner.pytalhost.com/3060s/

Please check for yourself if this documentation is accurate for the model.

Regards
Mark

Rolf Franke
04.Apr.09
  3

Thank you for the information, much appreciated.

Rolf Franke
