Einbau-Wechselrichter WRE2

Einbau-Wechselrichter WRE2; Telefunken (ID = 7928) Power-S

Einbau-Wechselrichter WRE2; Telefunken (ID = 2494432) Power-S
Use red slider bar for more.
Einbau-Wechselrichter WRE2; Telefunken (ID = 7928) Power-S
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1938 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 105-120, 200-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Einbau-Wechselrichter WRE2 - Telefunken Deutschland TFK,
Material Metal case
Shape Chassis only or for «building in»
Notes Wechselrichter
Source of data Radiokatalog Band 1, Ernst Erb

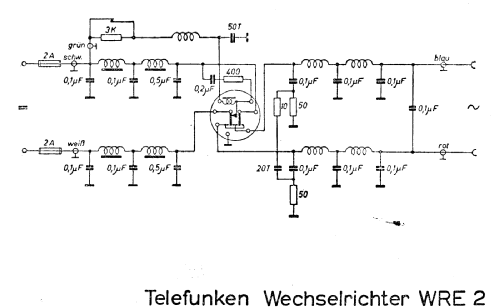

Circuit diagram reference Lange + Schenk
