Zusatzbaustein SECAM G E-Nr. 318 951 628
Use red slider bar for more.

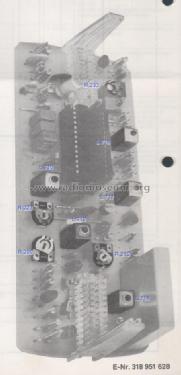

Telefunken: Zusatzbaustein SECAM G E-Nr. 318 951 628 [mod-past25] ID = 1684885 451x933
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1978 ?? | Category: Radio module post 1925 (not a part, not a key) | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | Powered by external power supply or a main unit. |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Zusatzbaustein SECAM G E-Nr. 318 951 628 - Telefunken Deutschland TFK, |
| Material | Various materials |
| Shape | Chassis only or for «building in» |
| Notes | Für die Farbfernsehchassis 415, 615 und 714 A. |

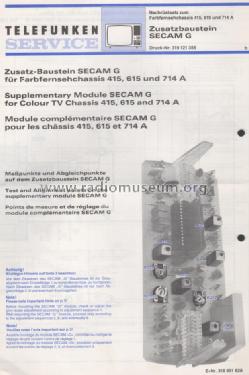

| Mentioned in | -- Original-techn. papers. (Telefunken Service Unterlage Druck-Nr. 319 121 355) |
Model page created by a member from A. See "Data change" for further contributors.
