Zweier 1210WLK (T1210WLK)

Zweier 1210WLK ; Telefunken; Wien (ID = 1449650) Radio

Zweier 1210WLK ; Telefunken; Wien (ID = 7423) Radio
Zweier 1210WLK ; Telefunken; Wien (ID = 121920) Radio Zweier 1210WLK ; Telefunken; Wien (ID = 121923) Radio
Zweier 1210WLK ; Telefunken; Wien (ID = 121922) Radio Zweier 1210WLK ; Telefunken; Wien (ID = 1527428) Radio
Zweier 1210WLK ; Telefunken; Wien (ID = 1568492) Radio Zweier 1210WLK ; Telefunken; Wien (ID = 19547) Radio
Zweier 1210WLK ; Telefunken; Wien (ID = 1568493) Radio Zweier 1210WLK ; Telefunken; Wien (ID = 1568495) Radio
Zweier 1210WLK ; Telefunken; Wien (ID = 1568499) Radio Zweier 1210WLK ; Telefunken; Wien (ID = 1568490) Radio
Use red slider bar for more.
Zweier 1210WLK ; Telefunken; Wien (ID = 121920) Radio
Telefunken; Wien: Zweier 1210WLK [Radio] ID = 121920 450x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zweier 1210WLK (T1210WLK), Telefunken; Wien:
Telefunken 1210 WLK

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1284 RES964 RGN1064
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Zweier 1210WLK - Telefunken; Wien
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 225 x 315 x 190 mm / 8.9 x 12.4 x 7.5 inch
Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

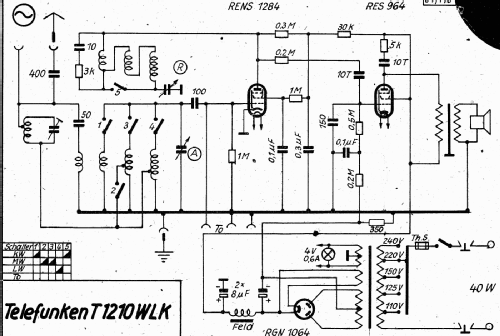

Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Telefunken; Wien
Here you find 109 models, 95 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
