Zweiröhren-Niederfrequenzverstärker EV89d EVN171
Use red slider bar for more.

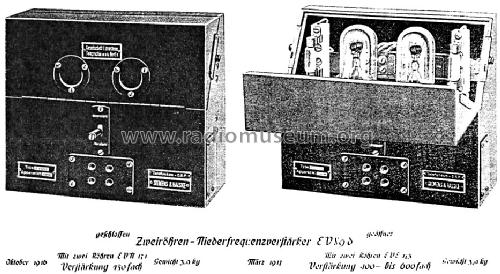

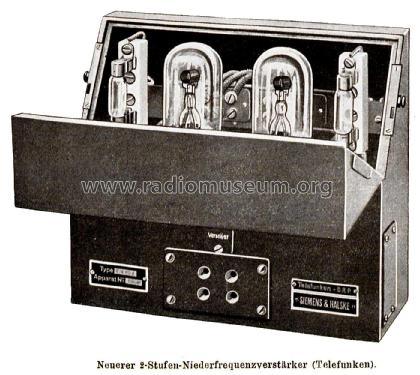

Telefunken: Zweiröhren-Niederfrequenzverstärker EV89d [Ampl/Mixer] ID = 1062876 933x512
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1916 | Category: Audio Amplifier or -mixer | ||||
| Valves / Tubes | 2: EVN171 EVN171 |
|---|
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | |
| Power type and voltage | Storage and/or dry batteries |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Zweiröhren-Niederfrequenzverstärker EV89d [EVN171] - Telefunken Deutschland TFK, |

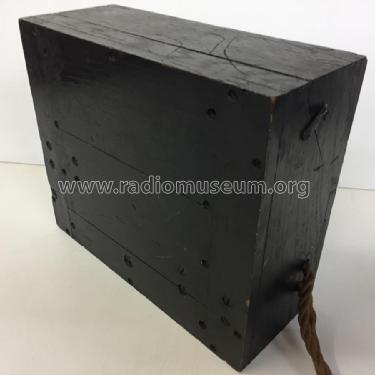

| Material | Wooden case, TUBES VISIBLE. |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 200 x 180 x 90 mm / 7.9 x 7.1 x 3.5 inch |
| Notes | Zweiröhren-Niederfrequenzverstärker EV89d, ab Oktober 1916 mit zwei EVN171. Verstärkung 150-fach. |
| Net weight (2.2 lb = 1 kg) | 3.9 kg / 8 lb 9.4 oz (8.59 lb) |
Model page created by a member from D. See "Data change" for further contributors.
