- Country
- Brazil
- Manufacturer / Brand
- Teleunião, Indústria de Rádios e Televisão; Porto Alegre (RS)
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329460
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- unknown_diode B250C75 Vibrador
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 43B2 - Teleunião, Indústria de Rádios
- Notes
-
Alimentador con Vibrador Asincrónico tipo D54-V2
- Literature/Schematics (1)

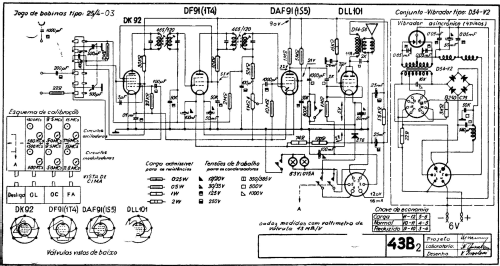

- -- Schematic
- Author
- Model page created by Volnei Deutschmann. See "Data change" for further contributors.
