632GR

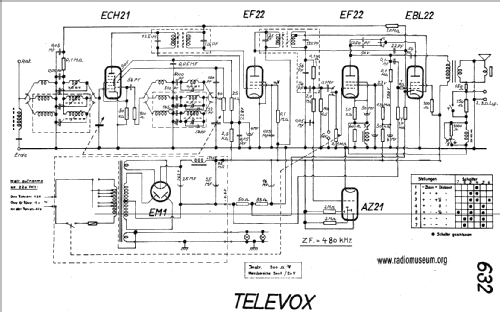

632GR; Televox Marke der (ID = 20631) Radio

632GR; Televox Marke der (ID = 20632) Radio
632GR; Televox Marke der (ID = 2504) Radio
Use red slider bar for more.
632GR; Televox Marke der (ID = 2504) Radio
Televox Marke der: 632GR [Radio] ID = 2504 660x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 632GR, Televox (Marke der SAG); Zürich

Country:  Switzerland
Manufacturer / Brand:  Televox (Marke der SAG); Zürich
alternative name

SAG, Schwachstromtechnik AG; Zürich || Schwachstromtechnik AG (SAG); Zürich
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ21
Main principle Superheterodyne (common); ZF/IF 480 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 632GR - Televox Marke der SAG; Zürich
Material Wooden case
Notes ZF auch 476
Price in first year of sale 765.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
