Transitradio 211 (2+1+1)

Transitradio 211 ; Teppaz; Lyon (ID = 290491) Radio

Transitradio 211 ; Teppaz; Lyon (ID = 290492) Radio

Transitradio 211 ; Teppaz; Lyon (ID = 290493) Radio
Transitradio 211 ; Teppaz; Lyon (ID = 974957) Radio Transitradio 211 ; Teppaz; Lyon (ID = 359945) Radio
Transitradio 211 ; Teppaz; Lyon (ID = 359943) Radio Transitradio 211 ; Teppaz; Lyon (ID = 359944) Radio
Transitradio 211 ; Teppaz; Lyon (ID = 359946) Radio Transitradio 211 ; Teppaz; Lyon (ID = 359947) Radio
Transitradio 211 ; Teppaz; Lyon (ID = 359948) Radio Transitradio 211 ; Teppaz; Lyon (ID = 359949) Radio
Transitradio 211 ; Teppaz; Lyon (ID = 974953) Radio Transitradio 211 ; Teppaz; Lyon (ID = 974954) Radio
Use red slider bar for more.
Transitradio 211 ; Teppaz; Lyon (ID = 974957) Radio
Teppaz; Lyon: Transitradio 211 [Radio] ID = 974957 933x700

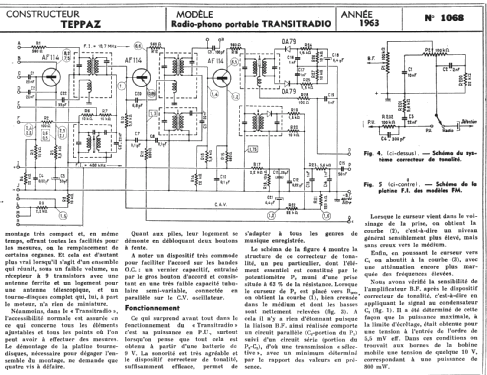

Select picture or schematic to display from thumbnails on the right and click for download.
For model Transitradio 211 (2+1+1), Teppaz; Lyon

Country:  France
Manufacturer / Brand:  Teppaz; Lyon
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF115 AF117 AF117 OC71 OC75 AC128 AC128 OA70 or. OA79
Main principle Superheterodyne (common); ZF/IF 480 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Transitradio 211 - Teppaz; Lyon
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 325 x 150 x 255 mm / 12.8 x 5.9 x 10 inch
Notes

Electrophone avec radio, version 211: 2 OC+PO+GO. Tourne-disques 4 vitesses. HP 17 cm haute fidélité. Contrôle de tonalité. Bande étalée.

Adaptable à tous secteurs alternatifs avec système Alimentation Secteur, de 100 à 250 V, 50 ou 60 Hz, prend la place du tiroir à piles.

3 coloris: gris/bleu, rouge/noir havane/maron. Poids sans piles.

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Mentioned in -- Original prospect or advert

Model page created by Klaus Dräger. See "Data change" for further contributors.
