• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97816

• • Brand: Supraphon

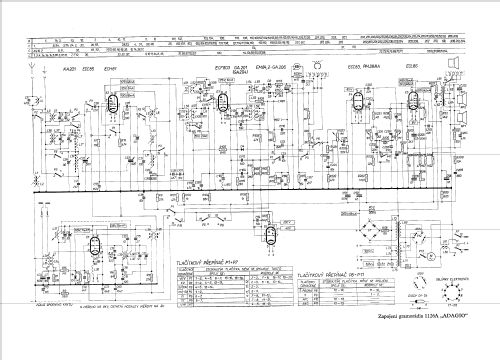

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 ECF803 ECC83 EM84 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Adagio 1126A - Tesla; Praha, Bratislava etc.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• OIRT Band 73,5-65,5 MHz; Plattenspieler 16/33/45 UpM, automatische Endabschaltung mit halbautomatischer Bedienung, piezoelektrischer Tonabnehmer.

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace a Zesilovace

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
