Arie 506A

Arie 506A; Tesla; Praha, (ID = 94326) Radio

Arie 506A; Tesla; Praha, (ID = 94261) Radio

Arie 506A; Tesla; Praha, (ID = 94260) Radio

Arie 506A; Tesla; Praha, (ID = 83696) Radio
Arie 506A; Tesla; Praha, (ID = 1326426) Radio Arie 506A; Tesla; Praha, (ID = 86629) Radio
Arie 506A; Tesla; Praha, (ID = 555265) Radio Arie 506A; Tesla; Praha, (ID = 86630) Radio
Arie 506A; Tesla; Praha, (ID = 1326438) Radio Arie 506A; Tesla; Praha, (ID = 555264) Radio
Arie 506A; Tesla; Praha, (ID = 86652) Radio Arie 506A; Tesla; Praha, (ID = 1326437) Radio
Arie 506A; Tesla; Praha, (ID = 555266) Radio Arie 506A; Tesla; Praha, (ID = 87418) Radio
Use red slider bar for more.
Arie 506A; Tesla; Praha, (ID = 1326426) Radio
Tesla; Praha,: Arie 506A [Radio] ID = 1326426 933x797

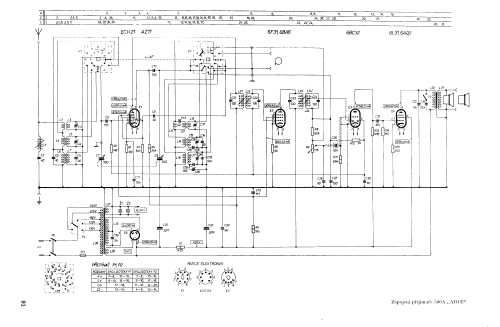

Select picture or schematic to display from thumbnails on the right and click for download.
For model Arie 506A, Tesla; Praha, Bratislava etc.:
By courtesy of guest Marian Popov, Pazardzhik, Bulgaria. With my thanks for these excellent pictures.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner

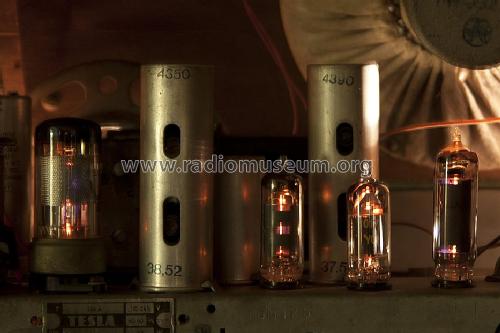

Valves / Tubes 5: ECH21 6F31 6BC32 6L31 AZ11
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Arie 506A - Tesla; Praha, Bratislava etc.
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Some models had tube 6BA6 instead of 6F31 and 6AQ5 instead of 6L31. KW 16,2 m bis 51,3 m
Mentioned in Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

Model page created by Gabriel Toth. See "Data change" for further contributors.
