Blanik 605A

Blanik 605A; Tesla; Praha, (ID = 94548) Radio

Blanik 605A; Tesla; Praha, (ID = 94550) Radio

Blanik 605A; Tesla; Praha, (ID = 94549) Radio
Blanik 605A; Tesla; Praha, (ID = 68210) Radio Blanik 605A; Tesla; Praha, (ID = 68211) Radio
Blanik 605A; Tesla; Praha, (ID = 68213) Radio Blanik 605A; Tesla; Praha, (ID = 68212) Radio
Blanik 605A; Tesla; Praha, (ID = 304584) Radio Blanik 605A; Tesla; Praha, (ID = 384005) Radio
Blanik 605A; Tesla; Praha, (ID = 388225) Radio Blanik 605A; Tesla; Praha, (ID = 656550) Radio
Blanik 605A; Tesla; Praha, (ID = 656551) Radio Blanik 605A; Tesla; Praha, (ID = 656552) Radio
Use red slider bar for more.
Blanik 605A; Tesla; Praha, (ID = 68210) Radio
Tesla; Praha,: Blanik 605A [Radio] ID = 68210 933x699

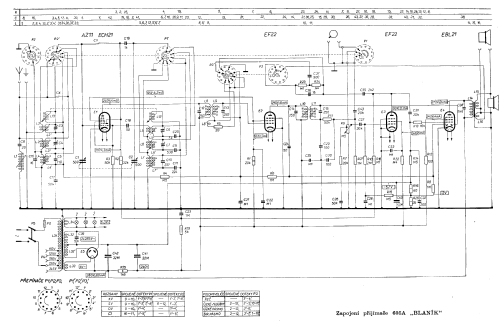

Select picture or schematic to display from thumbnails on the right and click for download.
For model Blanik 605A, Tesla; Praha, Bratislava etc.:
Tesla 605 A Blaník Produktion 1951 - 53

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 EF22 EF22 EBL21 AZ11
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Blanik 605A - Tesla; Praha, Bratislava etc.
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes 606A-3: with magiic eye. 606A-5: with magic eye, 2xSW and Broadcast bands, IF=468kHz. 606A-7:with magic eye, 2xSW and Broadcast bands, IF=468kHz, without station names. 609A-2: in box 615A, magic eye. 609A-5: 606A-5 in box of 615A. 609A-7: 606A-7 in box of 615A.
Price in first year of sale 11'100.00 Kčs
External source of data Ceskoslovenske Rozhlasov 1961

Model page created by Gabriel Toth. See "Data change" for further contributors.
