• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70616

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 EM11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Melodic I - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Notes

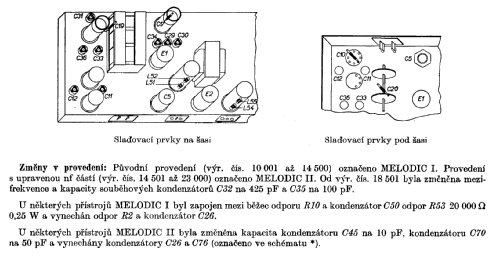

• See also Melodic II - with modified audio amplifier, S.N.14501-23000. From S.N.18501 modified IF to 461kHz.

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
