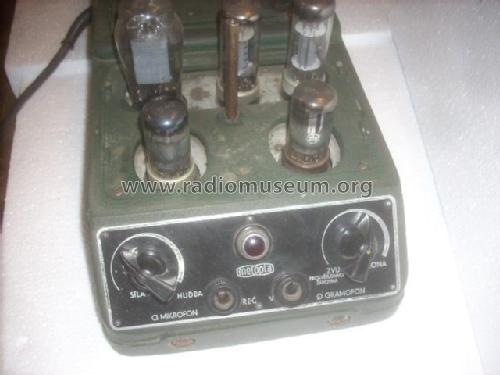

Meopta BZ202

Meopta BZ202; Meopta; Prerov (ID = 1894962) Ampl/Mixer
Use red slider bar for more.
Meopta BZ202; Meopta; Prerov (ID = 1894962) Ampl/Mixer
Meopta; Prerov: Meopta BZ202 [Ampl/Mixer] ID = 1894962 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Meopta BZ202, Meopta; Prerov

Country:  Czechoslovakia
Manufacturer / Brand:  Meopta; Prerov
Year: 1949 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: ECH21 ECH21 EBL21 EBL21 AZ4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 7.5 W (unknown quality)
from Radiomuseum.org Model: Meopta BZ202 - Meopta; Prerov
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Eingänge für Lichtton, Mikrofon und Phono.
Am zugehörigen Vorschalttrafo Netzspannung wählbar:
120, 130, 210, 220, 230 und 240 Volt.

Ausgangsleistung an 3,8 Ohm = 7,5 Watt.

Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)

Model page created by Norbert Haselbach. See "Data change" for further contributors.
