• Year
  • 1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 108898

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

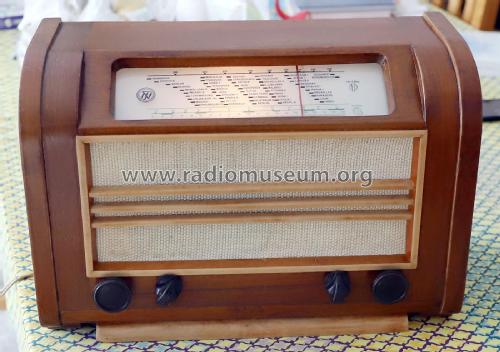

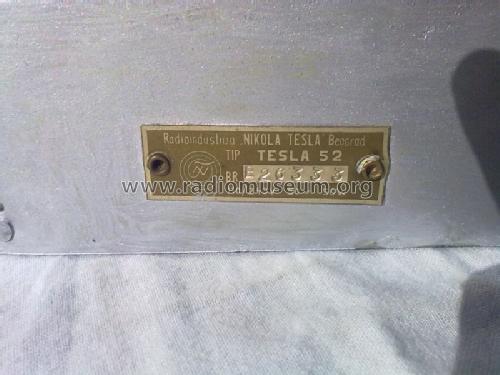

  • Model: Tesla 52 - Radioindustrija Nikola Tesla;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Sensitivity to antenna: Short wave 10-25uV, Broadcast 8-12uV, Tone control: in the middle of position.
    Sensitivity to Phono: cca.50mV/800Hz,Tone control: in the middle of position. Tone control: 3 stage position.
    Short wave 18,75-6MHz, Broadcast 1500-500kHz.
  • Literature/Schematics (1)
  • Opravka radio aparata II.izdaja (ing. Velimir Mesaroš)
  • Author
  • Model page created by Marko Karlin. See "Data change" for further contributors.
