Tasma Twin Four 1103

Tasma Twin Four 1103; Thom & Smith Pty. (ID = 1976466) Radio
Tasma Twin Four 1103; Thom & Smith Pty. (ID = 509474) Radio Tasma Twin Four 1103; Thom & Smith Pty. (ID = 509475) Radio
Tasma Twin Four 1103; Thom & Smith Pty. (ID = 2093969) Radio Tasma Twin Four 1103; Thom & Smith Pty. (ID = 2093970) Radio
Tasma Twin Four 1103; Thom & Smith Pty. (ID = 2093971) Radio
Use red slider bar for more.
Tasma Twin Four 1103; Thom & Smith Pty. (ID = 509474) Radio
Thom & Smith Pty.: Tasma Twin Four 1103 [Radio] ID = 509474 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tasma Twin Four 1103, Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW:
Ebay item #190259082858

Country:  Australia
Manufacturer / Brand:  Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW
Brand

Tasma
Year: 1949/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH33 or ECH35 EBF35 EL33A 5Y3GT
Main principle Superheterodyne (common); ZF/IF 458 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Tasma Twin Four 1103 - Thom & Smith Pty. Ltd.Tasma;
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 319 x 195 x 195 mm / 12.6 x 7.7 x 7.7 inch

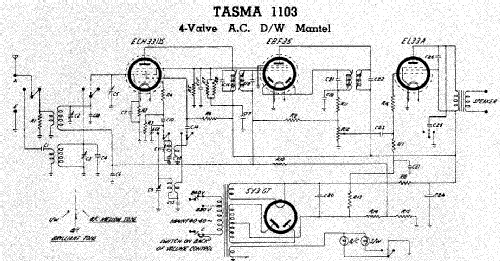

Source of data -- Schematic
Circuit diagram reference Australian Official Radio Service Manual Vol. VIII

Model page created by Peter Hughes. See "Data change" for further contributors.
