• Country
• Australia

• Manufacturer / Brand
• Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184009

• • Brand: Tasma

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1N5GT 1A7GT 1N5GT 1H5GT 1Q5GT

• Main principle
• Superhet with RF-stage; ZF/IF 458 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Batteries / addl. power jack / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Tasma 777 - Thom & Smith Pty. Ltd.Tasma;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• This model could also be powered from the mains using an external plug-in AC power unit.

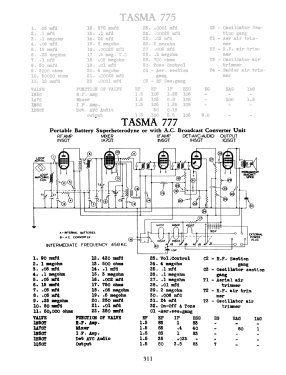

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. IV

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
