• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1980 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 317767

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• BC414 BC237 BC337 BC327 BC485 BD135 LM1011 1N541 34P4 1N4002 BZX46

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

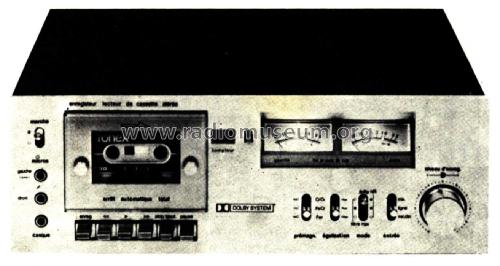

• Model: Cassette Deck Estereofónico PC-801 - Thomson Española S.A.; Thomson

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 142 x 315 mm / 16.5 x 5.6 x 12.4 inch

• Notes

• Thomson Española S.A. Casette Deck Estereofónico PC-801

  Para cintas de Hierro, Cromo o Ferrocromo

  Forma conjunto con

  • Preamplificador PA-801
  • Amplificador      AP-801
  • Sintonizador      T - 801

  Listado un único semiconductor por tipo

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
