• Year
  • 1975 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 318708

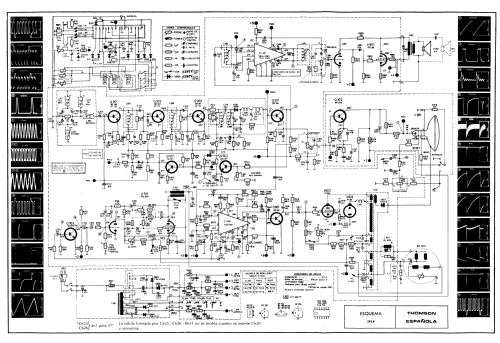

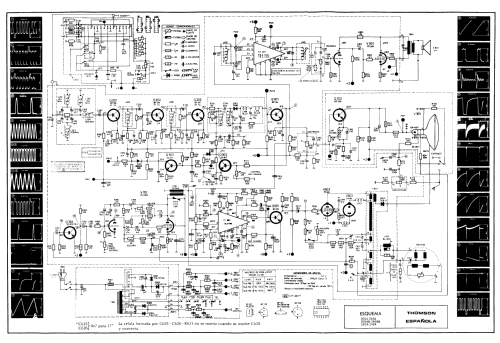

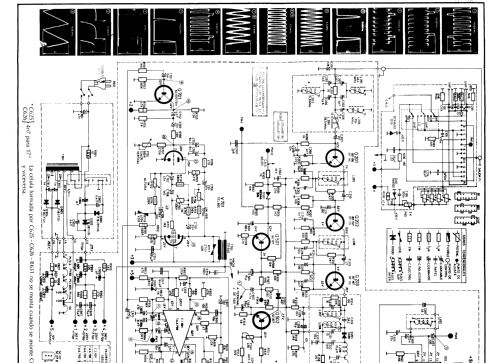

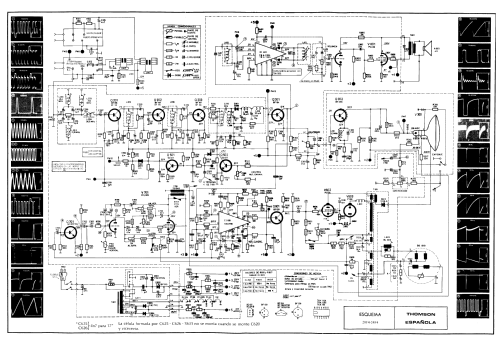

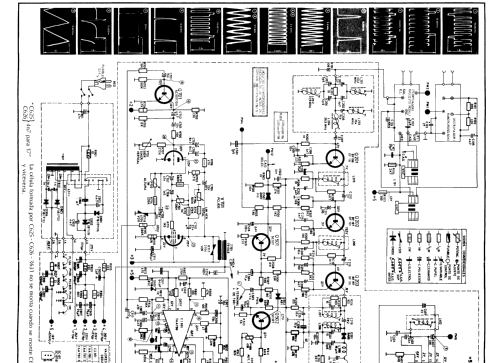

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Thomson-General Eléctrica 24S4 Ch= X50 /5 - Thomson Española S.A.; Thomson
  • Shape
  • Tablemodel, low profile (big size).
  • Literature/Schematics (1)

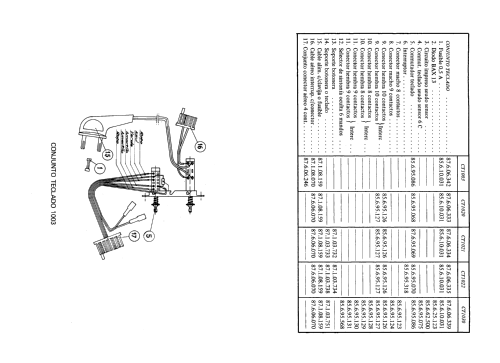

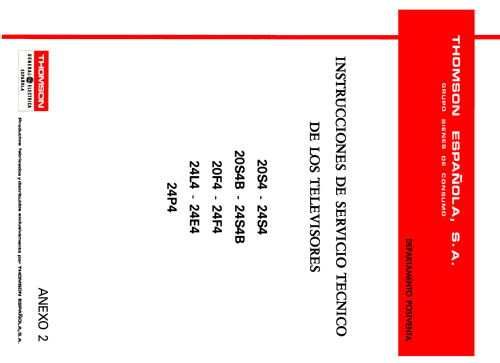

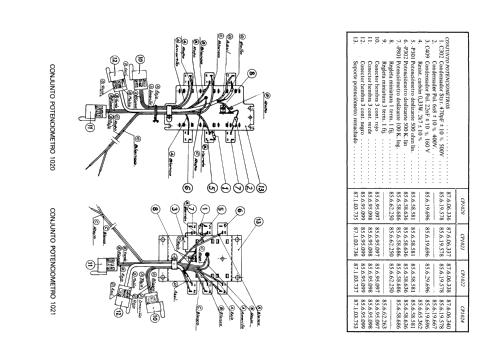

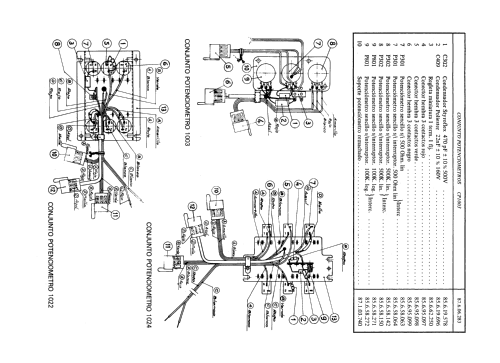

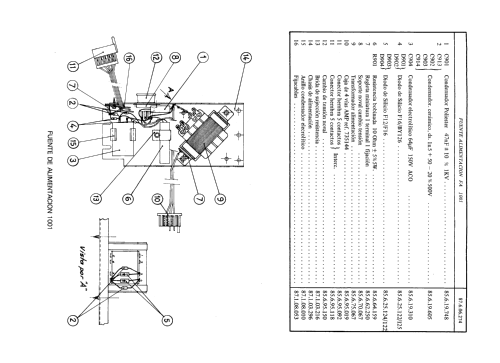

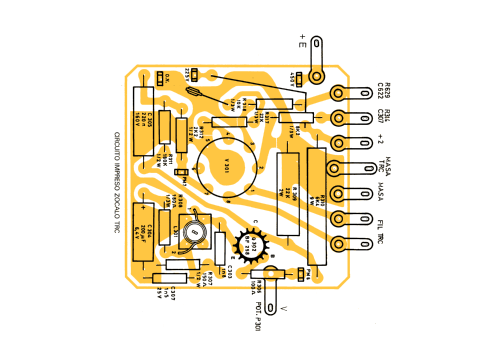

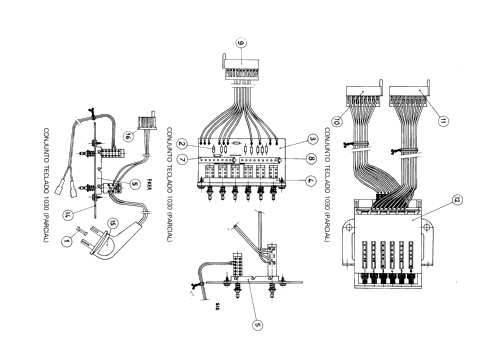

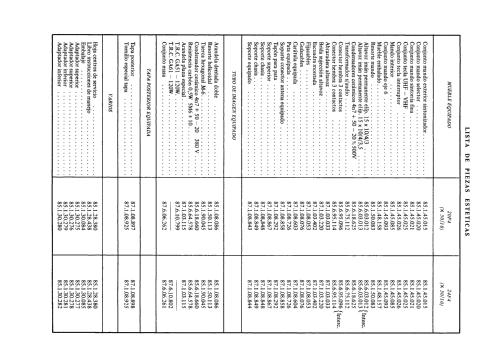

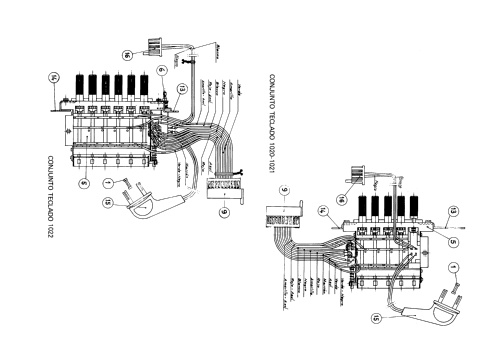

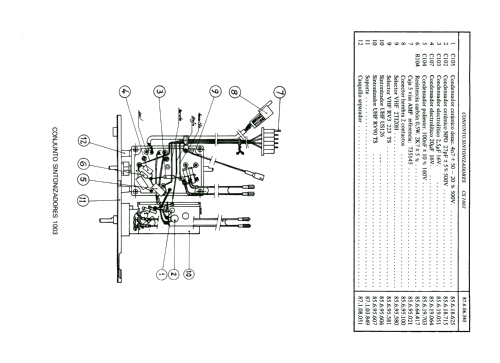

  • -- Original-techn. papers. (Thomson-GEE Instrucciones de servicio técnico Anexo 2 TV Ch=X50)
  • Literature/Schematics (2)
  • Nota de servicio 231 y otras (ver Ch= X50)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
