Imperial 607-463

Imperial 607-463; Thorens SA; St. (ID = 1667413) Radio Imperial 607-463; Thorens SA; St. (ID = 1667404) Radio
Imperial 607-463; Thorens SA; St. (ID = 1667406) Radio Imperial 607-463; Thorens SA; St. (ID = 1667410) Radio
Imperial 607-463; Thorens SA; St. (ID = 1667405) Radio Imperial 607-463; Thorens SA; St. (ID = 1667402) Radio
Imperial 607-463; Thorens SA; St. (ID = 1667403) Radio Imperial 607-463; Thorens SA; St. (ID = 1667417) Radio
Use red slider bar for more.
Imperial 607-463; Thorens SA; St. (ID = 1667413) Radio
Thorens SA; St.: Imperial 607-463 [Radio] ID = 1667413 933x481
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 607-463, Thorens SA; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Thorens SA; St. Croix
alternative name

Thorens Inc., N.Y.
Year: 1934 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1234 RENS1294 REN924 RES964 RGN1054
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Imperial 607-463 - Thorens SA; St. Croix
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 450 x 470 x 270 mm / 17.7 x 18.5 x 10.6 inch
Notes

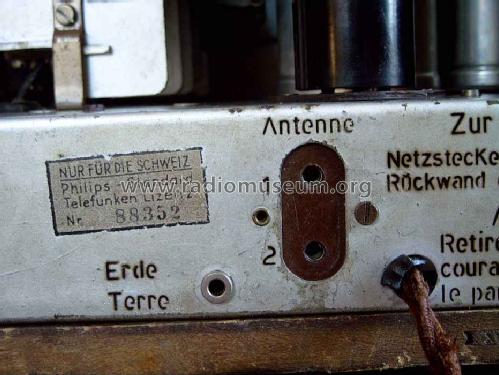

Lizenz Philips/Telefunken, Röhrenbestückung in der Bezeichnung beider Hersteller auf dem Chassis. Die Nummer 607-463 ist im Innern des Gehäuses unterhalb des Lautsprechers , auf der Chassis-Vorderseite sowie auf dem Drehko angebracht.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

Model page created by Manfred Rathgeb. See "Data change" for further contributors.



All listed radios etc. from Thorens SA; St. Croix
Here you find 208 models, 180 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
