• Country
• Switzerland

• Manufacturer / Brand
• Thorens SA; St. Croix

• Year
• 1959 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 174788

• • alternative name: Thorens Inc., N.Y.

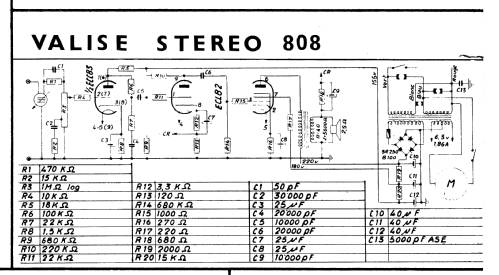

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECL82 ECL82

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Valise stéréo 808 - Thorens SA; St. Croix

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 290 x 205 mm / 15.7 x 11.4 x 8.1 inch

• Notes
• Laufwerk : CB14.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.

• Other Models

• Here you find 221 models, 192 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
