Titan AG; Zürich: 501 [Radio] ID = 26894 320x222
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1949/1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH21 ECH21 EBL21 AZ21 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 468 kHz |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-250 Volt |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. |
| Power out | |
| from Radiomuseum.org | Model: 501 - Titan AG; Zürich |
| Material | Wooden case |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |

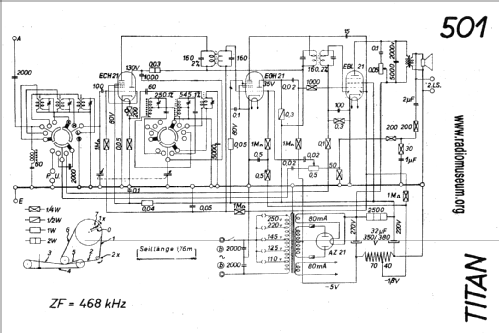

| Circuit diagram reference | Thali-Schemasammlung und Tungsram-Röhrenbestückung. |
