Titan 483

Titan 483; Titan AG; Zürich (ID = 22258) Radio

Titan 483; Titan AG; Zürich (ID = 22259) Radio
Titan 483; Titan AG; Zürich (ID = 1261181) Radio Titan 483; Titan AG; Zürich (ID = 1261182) Radio
Titan 483; Titan AG; Zürich (ID = 1261183) Radio Titan 483; Titan AG; Zürich (ID = 1261184) Radio
Titan 483; Titan AG; Zürich (ID = 1261185) Radio Titan 483; Titan AG; Zürich (ID = 1261186) Radio

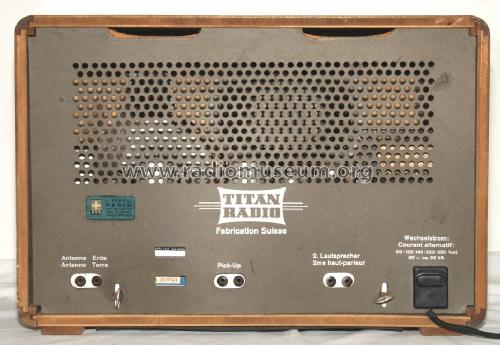

Titan 483; Titan AG; Zürich (ID = 1261188) Radio
Use red slider bar for more.
Titan 483; Titan AG; Zürich (ID = 1261181) Radio

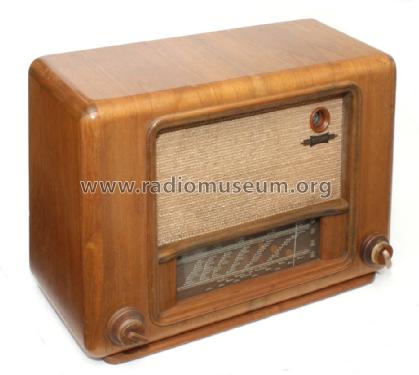

Titan AG; Zürich: Titan 483 [Radio] ID = 1261181 933x835
Select picture or schematic to display from thumbnails on the right and click for download.
For model Titan 483, Titan AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Titan AG; Zürich
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7S7 7A7 7B6 7C5 6U5 80
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Titan 483 - Titan AG; Zürich
Material Wooden case
Dimensions (WHD) 460 x 310 x 220 mm / 18.1 x 12.2 x 8.7 inch
Notes Gerät in Minerva Lizenz gefertigt (Chassis Minerva Radio)
Price in first year of sale 495.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

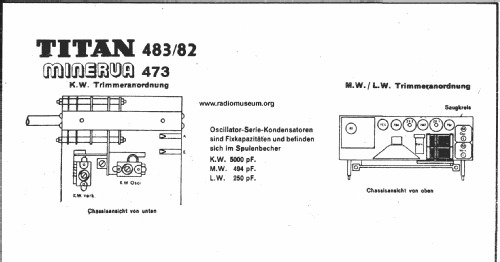

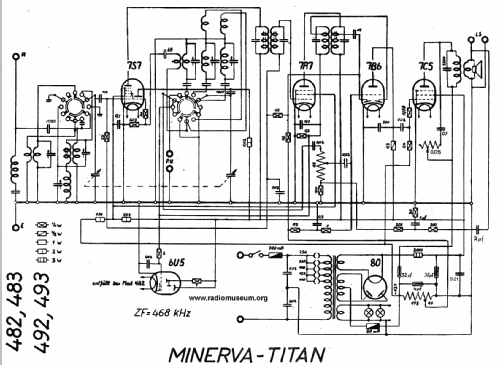

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.


All listed radios etc. from Titan AG; Zürich
Here you find 36 models, 28 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
