• Country
• Sweden

• Manufacturer / Brand
• Tjerneld Radio AB; Stockholm

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126250

• Number of Tubes
• 4

• Valves / Tubes
• DK92 DF91 DAF91 DL94

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 130; 150; 220 / 90 & 7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

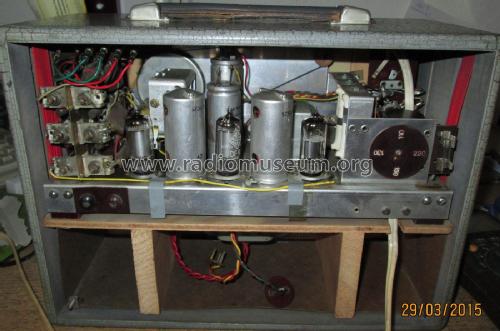

• Model: LVB-53 - Tjerneld Radio AB; Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 225 x 140 mm / 12.2 x 8.9 x 5.5 inch

• Notes
• Silicon rectifier. In brochures up to 1955-56. (Tjerneld LVB 53 is most likely identical with EIA ABC 52)

• Price in first year of sale
• 280.00 SEK

• Source of data
• -- Original prospect or advert
