Box Speaker BS-372

Box Speaker BS-372; TOA Electric Co., (ID = 2316424) Speaker-P Box Speaker BS-372; TOA Electric Co., (ID = 2316425) Speaker-P
Box Speaker BS-372; TOA Electric Co., (ID = 2316426) Speaker-P Box Speaker BS-372; TOA Electric Co., (ID = 2316427) Speaker-P
Use red slider bar for more.
Box Speaker BS-372; TOA Electric Co., (ID = 2316424) Speaker-P
TOA Electric Co.,: Box Speaker BS-372 [Speaker-P] ID = 2316424 1400x1864
Select picture or schematic to display from thumbnails on the right and click for download.
For model Box Speaker BS-372, TOA Electric Co., LTD.; Kobe

Country:  Japan
Manufacturer / Brand:  TOA Electric Co., LTD.; Kobe
Year: 1975 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 cm = 4.5 inch
Power out 3 W (max.)
from Radiomuseum.org Model: Box Speaker BS-372 - TOA Electric Co., LTD.; Kobe
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 190 x 250 x 80 mm / 7.5 x 9.8 x 3.1 inch
Notes

TOA Speaker BST-24, 8 Ohm, 3 W.

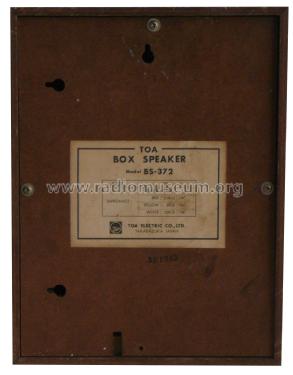

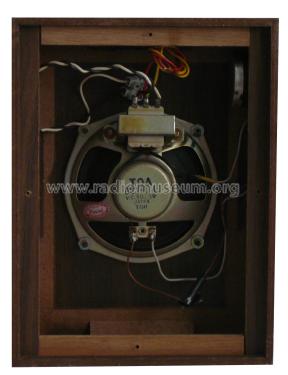

This Box System originally is composed of two parts: a loudspeaker with an impedance of 8 Ω, and a transformer with 3.3 k, 5 k and 10 k Ω input impedance. It's to be used when an output for an additional speaker is connected to the primary of the output transformer, for example of a radio device.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.
