M1-1

M1-1; Tomass, A., (ID = 501717) Radio M1-1; Tomass, A., (ID = 501718) Radio
Use red slider bar for more.
M1-1; Tomass, A., (ID = 501717) Radio

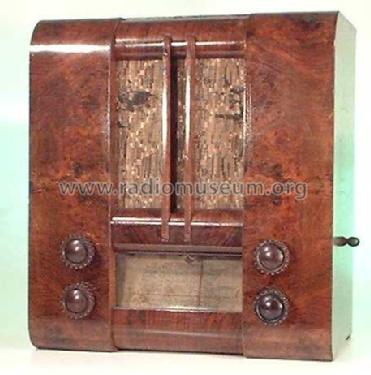

Tomass, A.,: M1-1 [Radio] ID = 501717 458x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model M1-1, Tomass, A., radiodarbnica; Liepaja:
Thanks for Atis Brikmanis, Liepaja

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Tomass, A., radiodarbnica; Liepaja
Year: 1938/1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: M1-1 - Tomass, A., radiodarbnica;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).

Model page created by a member from LV. See "Data change" for further contributors.
