TZ10

TZ10; Tonfunk; Ermsleben/ (ID = 156457) Power-S
TZ10; Tonfunk; Ermsleben/ (ID = 156458) Power-S TZ10; Tonfunk; Ermsleben/ (ID = 156459) Power-S
TZ10; Tonfunk; Ermsleben/ (ID = 372607) Power-S TZ10; Tonfunk; Ermsleben/ (ID = 372608) Power-S
TZ10; Tonfunk; Ermsleben/ (ID = 372609) Power-S TZ10; Tonfunk; Ermsleben/ (ID = 683657) Power-S
TZ10; Tonfunk; Ermsleben/ (ID = 1202125) Power-S TZ10; Tonfunk; Ermsleben/ (ID = 1202126) Power-S
TZ10; Tonfunk; Ermsleben/ (ID = 1202127) Power-S
Use red slider bar for more.
TZ10; Tonfunk; Ermsleben/ (ID = 156458) Power-S
Tonfunk; Ermsleben/: TZ10 [Power-S] ID = 156458 933x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model TZ10, Tonfunk; Ermsleben/Harz; PGH (Ostd):
TZ10 mit eingeschobenem Radio T100

Country:  Germany
Manufacturer / Brand:  Tonfunk; Ermsleben/Harz; PGH (Ostd)
Brand

Walter Radio (Ostd.)
Year: 1962–1968 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details Power Supply (not only Batt.El.)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: TZ10 - Tonfunk; Ermsleben/Harz; PGH
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 235 x 110 x 60 mm / 9.3 x 4.3 x 2.4 inch

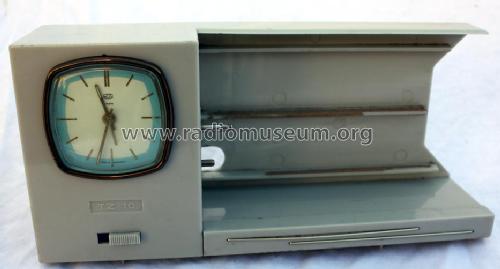

Notes Zusatzbox zur Aufnahme der Taschenempfänger T100 und T101 von Stern-Radio Berlin. Netzteil und analoge mechanische Weckuhr (Typ 6603 UMF Ruhla), dadurch Empfänger wahlweise über Batterie oder Netz als Wecker, ca. 30 Min.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 270.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Funkverlag Hein, Service-DVD

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
