• Country
• Germany

• Manufacturer / Brand
• Tonfunk; Ermsleben/Harz; PGH (Ostd)

• Year
• 1960 ?

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 277796

• • Brand: Walter Radio (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• PCC85 PC96

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/5500 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: UKW-Einbaugerät für Standard-Fernsehempfänger 1195.005 - Tonfunk; Ermsleben/Harz; PGH

• Shape
• Chassis only or for «building in»

• Notes

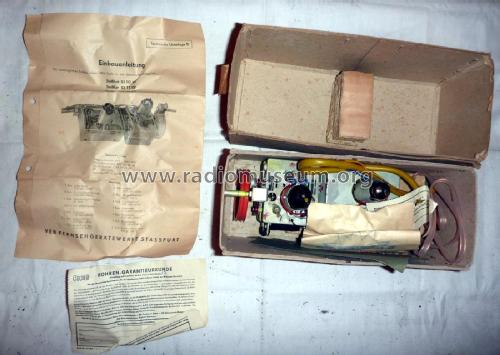

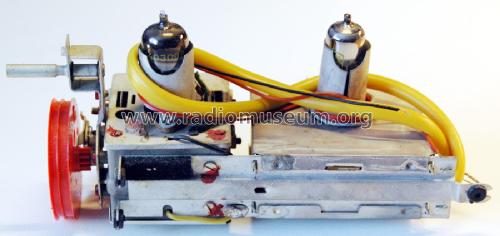

• UKW-Einbaugerät für Standard-Fernsehempfänger:
  Staßfurt 53 TG 101
  Staßfurt 53 TS 101
  Staßfurt 53 ST 101

  Empfangsteil entspricht dem in den Geräten: Staßfurt 53 ** 201.

  Frequenzbereich: 87,2 - 100,3 MHz
  Empfindlichkeit: ≤ 3,5µV 26db
  Ausgangs-ZF: 5,5MHz
