• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17420

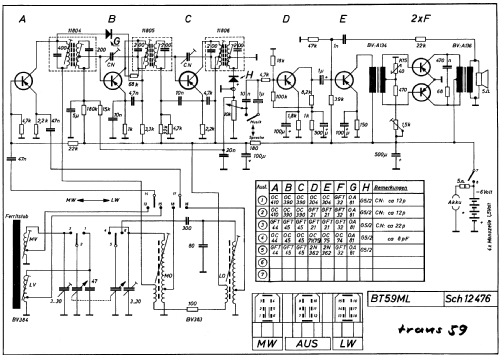

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC410 or. GFT44 or. OC44 OC390 or. GFT45 or. OC45 OC304 or. GFT21 or. OC71 or. OC75 GFT32 or. OC74 OA81 or. OA79 GSD5/2

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Trans 59 Ch= BT59ML - Tonfunk GmbH; Karlsruhe

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 180 x 70 mm / 10.2 x 7.1 x 2.8 inch

• Notes
• Transistoren: OC410, 2× OC390, OC71, OC75, 2× OC74;
  Dioden: 2× OA79.
  Auch andere Halbleiter-Bestückung möglich, siehe Schema.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Price in first year of sale
• 219.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 570 models, 334 with images and 240 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tonfunk GmbH; Karlsruhe
