3OF 5 C 09D 063

3OF 5 C 09D 063; Torotor; (ID = 2191946) Radio

3OF 5 C 09D 063; Torotor; (ID = 2193419) Radio
3OF 5 C 09D 063; Torotor; (ID = 2193416) Radio 3OF 5 C 09D 063; Torotor; (ID = 2193417) Radio
3OF 5 C 09D 063; Torotor; (ID = 2395930) Radio 3OF 5 C 09D 063; Torotor; (ID = 2395931) Radio
Use red slider bar for more.
3OF 5 C 09D 063; Torotor; (ID = 2193416) Radio
Torotor;: 3OF 5 C 09D 063 [Radio] ID = 2193416 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3OF 5 C 09D 063, Torotor; Charlottenlund

Country:  Denmark
Manufacturer / Brand:  Torotor; Charlottenlund
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SG7 6SA7 6SK7 6SQ7 6L6 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 3OF 5 C 09D 063 - Torotor; Charlottenlund
Notes

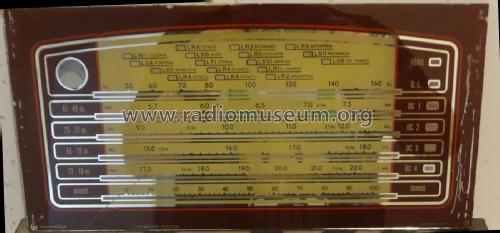

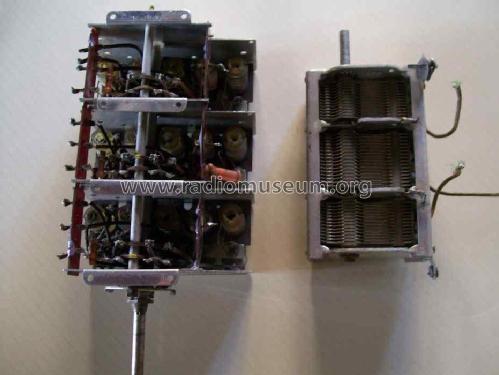

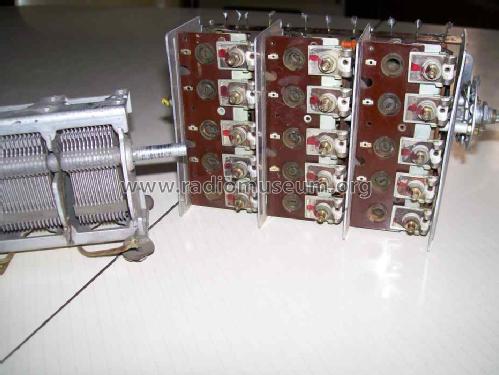

Este kit se compone de 1 block de bobinas 3OF 5 C , de 5 bandas (OM mas 4 OC), chasis, dial rectangular gigante, capacitor variable de 3 secciones y dos transformadores de frecuencia intermedia. Fue comercializado en la Argentina y los armadores en sus  talleres les colocaban diversos gabinetes, generalmente de madera. Muy usado para combinados y muebles grandes-.-

Mentioned in Seleccion de Circuitos, Argentina, año 1954, pag. 418-419

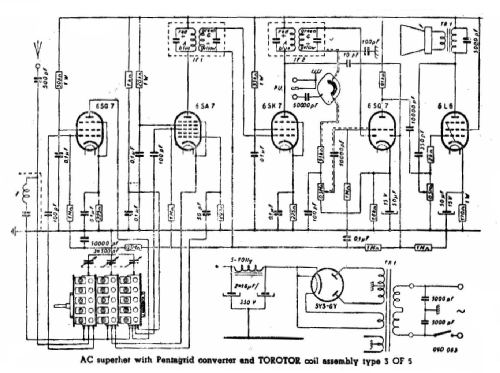

Literature/Schematics (1) -- Schematic

Model page created by Heriberto Tavella. See "Data change" for further contributors.



All listed radios etc. from Torotor; Charlottenlund
Here you find 2 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
