614A

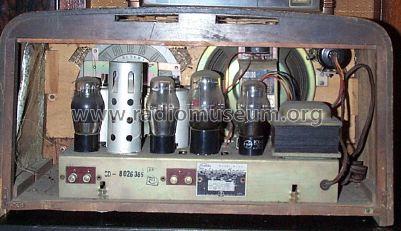

614A; Toshiba Corporation; (ID = 234516) Radio 614A; Toshiba Corporation; (ID = 234517) Radio
Use red slider bar for more.
614A; Toshiba Corporation; (ID = 234516) Radio
Toshiba Corporation;: 614A [Radio] ID = 234516 376x227
Select picture or schematic to display from thumbnails on the right and click for download.
For model 614A, Toshiba Corporation; Tokyo:
Dank an K. Hayashi, Japan.

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6W-C5 UZ-6D6 6Z-DH3A UZ-42 KX-80
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 100 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 614A - Toshiba Corporation; Tokyo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 235 x 205 mm / 19.3 x 9.3 x 8.1 inch
External source of data K. Hayashi
Source of data -- Collector info (Sammler)

Model page created by Berthold Bosch † 13.2.19. See "Data change" for further contributors.
