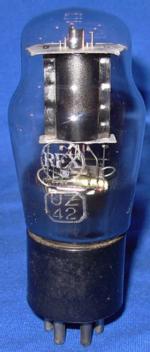

UZ-42

Information - Help
ID = 25317

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  Vacuum Pentode   Power/Output
Identical to UZ-42 = 42 = UZ42

Base 6-Pin-Base U6A, old, USA
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.7 Ampere / Indirect / Parallel, (AC/DC)
Literature Babani, International Radio Tube Encyclopaedia   Codex
-- Collector info (Sammler)
  UZ-42: Typische Schaltundsschema UZ42-42
Anonymous 1038 Collector

UZ-42: KoBi
Konrad Birkner † 12.08.2014


UZ-42: ARRL Handbook 1972
Michael Schlör


UZ-42: Hitachi Receiving Tube ct 578
Anonymous 1038 Collector


Usage in Models 1= 1947 ; 2= 1949 ; 1= 1950 ; 1= 1952? ; 3= 1952 ; 1= 1953?? ; 2= 1953 ; 1= 1955??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):12
