6TP-304

• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107851

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

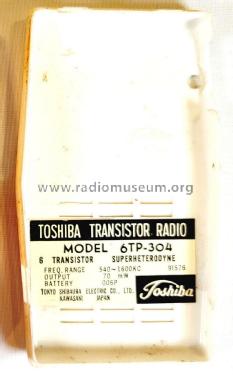

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2S52 2S53 2S53 2S54 2S56 2S56

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.07 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 6TP-304 - Toshiba Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.5 x 4.3 x 0 inch / 64 x 109 x 0 mm

• Notes

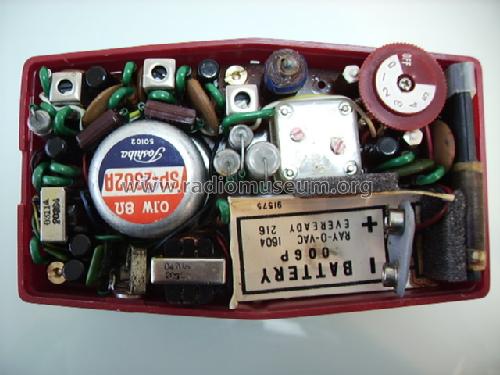

• Lautsprecher 0,1 W/8 Ohm SP-2302A made by Toshiba. Nickname "Coffin".

• Price in first year of sale
• 40.00 $

• Source of data
• Transistor Radios 1954-68

• Mentioned in
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 491 Folder 17 7-1960)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
