6TP-309Y

6TP-309Y; Toshiba Corporation; (ID = 564802) Radio

6TP-309Y; Toshiba Corporation; (ID = 564803) Radio

6TP-309Y; Toshiba Corporation; (ID = 564804) Radio

6TP-309Y; Toshiba Corporation; (ID = 564805) Radio
6TP-309Y; Toshiba Corporation; (ID = 564801) Radio
Use red slider bar for more.
6TP-309Y; Toshiba Corporation; (ID = 564801) Radio
Toshiba Corporation;: 6TP-309Y [Radio] ID = 564801 456x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6TP-309Y, Toshiba Corporation; Tokyo:
Sams photofact.

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2S52 2S53 2S53 2S54 2S56 2S56
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: 6TP-309Y - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Battery operated transistorized portable AM receiver.

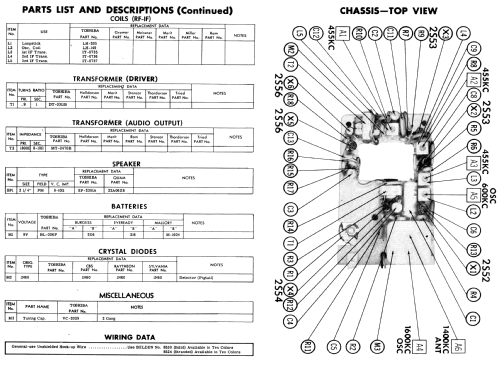

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 486 folder 25 date 5-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
