8 Transistor 4 Band 8L-788R

8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471396) Radio 8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471397) Radio
8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471395) Radio 8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471398) Radio
8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471399) Radio 8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471400) Radio

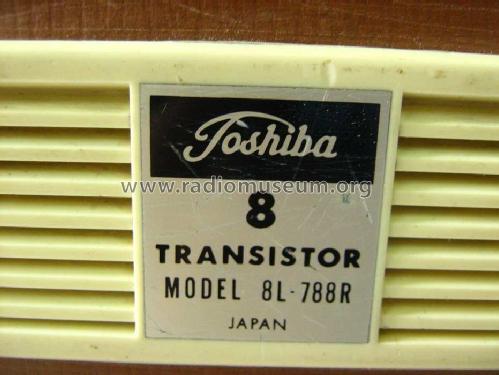

8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471401) Radio 8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471402) Radio
8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471403) Radio 8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471404) Radio
Use red slider bar for more.
8 Transistor 4 Band 8L-788R; Toshiba Corporation; (ID = 1471396) Radio
Toshiba Corporation;: 8 Transistor 4 Band 8L-788R [Radio] ID = 1471396 933x706
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 Transistor 4 Band 8L-788R, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: unknown_tr unknown_tr 2SA49 2SA53 2SB54 2SB54 2SB56 2SB56 1N60
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.4 W (max.)
from Radiomuseum.org Model: 8 Transistor 4 Band 8L-788R - Toshiba Corporation; Tokyo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 150 x 75 mm / 9.8 x 5.9 x 3 inch
Notes

Toshiba Transistor Radio 8L-788R

Coverage:
SW 1:  1.6  to  4 MHz
SW 2:  4  to 10 MHz

SW 3:  10  to 22 MHz

This model is similar to 8L-788L , but without LW band.

Made in Japan.

Mentioned in Radio & Electrical Retailer, Australia

Model page created by Daniel Rosha. See "Data change" for further contributors.
